EOS™ - Immediate Occlusion

OVER 1,600 ARTVENTIVE EOS™ PLUGS USED TO DATE WITH 100% SUCCESS

Immediate, Complete, and Permanent occlusion, only with the EOS™ Plug.

Simple & fast:

  • Reduces procedure time
  • Less radiation exposure to patient and staff
  • Minimal or no artefacts at follow-up MRI and CT imaging
  • Precise placement and deployment

// EOS™ Vascular Plug //

IMMEDIATE OCCLUSION

Watch the EOS™ Plug animation to see how our unique design enables peripheral vascular embolization immediately upon deployment.
EOS™ PLUG and DELIVERY CATHETER
Minimal or no artefacts in follow-up diagnostic CT imaging:
EOS™ PLUG (left) vs. coils (right)
IMMEDIATE OCCLUSION ONLY WITH THE EOS™ PLUG
IMMEDIATE
Upon deployment, EOS™ Plug provides instantaneous occlusion of the vessel
COMPLETE
Initial clinical evidence shows 100% occlusion rate
PERMANENT
Initial clinical evidence shows 100% sustained vessel occlusion and no migration
FAST and PRECISE EOS™ PLUG PLACEMENT and DEPLOYMENT

1. EOS™ Plug advancing through the guide catheter

2. Guide catheter pulled back to expose EOS™ Plug

3. Pre-expansion of the membrane

4. Deployment of proximal end

5. Fully deployed EOS™ Plug
OPTIMIZED EFFICIENCY. ULTIMATE CONFIDENCE.
REDUCES PROCEDURE TIME
  • No waiting for clotting, immediate occlusion upon deployment
  • Minimal or no artefacts in follow-up diagnostic MRI or CT imaging
  • Minimizes fluoroscopy time, with potential for reducing radiation exposure for patients and staff
POTENTIAL FOR COST SAVINGS
  • Immediate vessel occlusion, may require fewer devices per procedure (i.e., compared to the use of multiple coils)
  • Shorter procedure time, may reduce related expenses (e.g., staff costs, room costs, etc.)
For more clinical information, click here.

// Testimonials //

// Case Studies //

1. Splenic Artery
Pre
Post
2. Pelvic Congestion Syndrome – Bilateral Ovarian Veins
Left Pre
Following injection of sclerosant: expansion of membrane on distal EOS™ Plug
Distal EOS™ Plug deployed
Two EOS™ Plugs deployed on left side: sclerosant injected between the distal and proximal plugs
Right: Following injection of sclerosant: expansion of membrane on distal EOS™ Plug
Distal EOS™ Plug deployed
Proximal EOS™ Plug with scaffold released and prior to releasing the plug: sclerosant was injected between the distal and proximal plugs
*NOTE the immediate & complete occlusion of the vessel at this stage
Post: After deployment of proximal EOS™ Plug
3. Internal Iliac Artery
Left Internal Iliac Artery Occlusion with 8mm EOS™ Plug Prior to EVAR
Pre 1
Pre 2
Post
4. Gastroduodenal Artery
Gastroduodenal Artery Occlusion with 5mm EOS™ Plug Prior to Y-90 Radioembolization
Pre
Post
5. Spermatic Vein (Varicocele)
Pre
Post

// Applications //

The EOS™ Plug provides unmatched versatility for multiple peripheral applications in veins and arteries.
  • INTRAHEPATIC PORTAL VEIN EMBOLIZATION
Increase remnant liver volume after major liver resection
  • SPLENIC ARTERY EMBOLIZATION
Avoid splenectomy during trauma or utilize prior to planned splenectomy
  • GASTRODUODENAL ARTERY EMBOLIZATION
Use before radioembolization or hepatic artery chemo infusion; hemorrhage, aneurysms, or fistulae
  •  ILIAC ARTERY EMBOLIZATION
Prior to, or during, EVAR procedures
  • SPERMATIC VEIN EMBOLIZATION: VARICOCELE
Treat pain and infertility due to varicosities in the scrotum
  • OVARIAN VEIN EMBOLIZATION: PELVIC CONGESTION SYNDROME
Address chronic pelvic pain associated with ovarian vein varices
  • PERIPHERAL VASCULATURE
Arterial trauma; venous insufficiency
  • ADDITIONAL PERIPHERAL VASCULAR APPLICATIONS
The ArtVentive Endoluminal Occlusion System (EOSTM) is indicated for arterial and venous embolization in the peripheral vasculature.

// Publications //

1. Venbrux AC, Rudakov L, Plass A, et al. A new occlusion device: application of the ArtVentive endoluminal occlusion system (EOS)---first in human clinical trial. Cardiovascular and Interventional Radiology. 2014Feb; 37(1):85-93.

 2. Emmert M, Venbrux A, Rudakov L, et al. The endovascular occlusion system for safe and immediate peripheral vessel occlusion during vascular interventions. Interactive Cardiovascular and Thoratic Surgery 2013;1-4:doi:10.1093/icvts/ivt318.
  • Read more

     3. Tamrazi A, WadhwaV, Duarte A, et al. Successful occlusion of the splenic artery using the Endoluminal Occlusion System. JVIR. 2015 Sept;1412-1414.


     4. Tellez A, Rudakov L, Dillon K, et al. Efficacy and safety evaluation of a novel endovascular occlusion system in a large peripheral model. TCT2015.


     5. Moelker A. First experience with a new vascular occlusion device: the ArtVentive Endoluminal Occlusion System – cases from Holland. GEST 2016 US.


     6. Pyra K, Jargiello T, et al. Evaluation of the effectiveness of embolization in PCS with the new vascular occlusion device (ArtVentive EOS): Preliminary results.


    Cardiovascular and Interventional Radiology, published online: 01 June 2016.


     7. Leiva Hernando L., A. Arroyo Bielsa, J. C. Fletes Lacayo, A. I. Rodríguez Montalbán


    Hospital Vithas Nuestra Señora de América, Madrid


    Nuevo Dispostivo EOS para la Embolización en el Síndrome de Congestión Pélvica (New EOS device for the embolization in the pelvic Congestion Syndrome)


    25th National Congress of the Spanish Chapter of Phlebology and Lymphology (CEFYL), April 2017


    8. Daniel Kuetting, MD, Carsten Meyer, MD, Hans Heinz Schild, MD, and Claus Christian Pieper, MD


    In Vitro Evaluation of the Occlusive Properties of the ArtVentive Endoluminal Occlusion System


    Occlusion Device for Transrenal Ureteral Occlusion.


    Journal of Endourology, Volume 31, Number 10, October 2017.


     9. Kuetting D., Schild H.H., Pieper C.C. University of Bonn, Germany


    In Vitro Evaluation of Non-Vascular Applications of the ArtVentive EOS Occlusive Device.SIR 2018


     10. Ferra M., Nielsen N., Venbrux A., George Washington University hospital, Washington DC


    Making a Varicocele a $teal.SIR 2018.


     11. Deib G., Gregg L., Venbrux A., Gailloud P.


    Division of Interventional Neuroradiology, The Johns Hopkins Hospital, Baltimore, Maryland


    Role of the endoluminal occlusion system (ArtVentive EOS) for large high-flow paraspinal and parietal AVMs. GEST 2018 US.


    12. The A., Department of Interventional Radiology, Erasmus MC, Rotterdam, The Netherlands


    First Experiences with a New Vascular Occlusion Device. GEST 2018 US


    13. Cionfoli N., Corti R., Fiorina I., Leati G., Moramarco L.P., Quaretti P.


    Unit of Interventional Radiology, Department of Radiology, Fondazione IRCCS Policlinico S. Matteo, Pavia, Italy


    Initial Single Center Experience Using the EOS Vascular Plug in Routine Clinical Practice: Safety and Efficacy. GEST 2018 US.


     14. Kuetting D., Schild H.H., Pieper C.C. Radiology Department University of Bonn, Germany


    In Vitro Evaluation of Non-Vascular Applications of an EOS Occlusive Device. GEST 2018 US.


    15. Kuetting D., Schild H.H., Pieper C.C. Radiology Department University of Bonn, Germany


    Evaluation of the occlusive properties of the ArtVentive EOS for transrenal ureteral occlusion and percutaneous occlusion of biliary leaks. CIRSE, Lisbon, September 25, 2018.

//  EOS™ Demo Kit  //

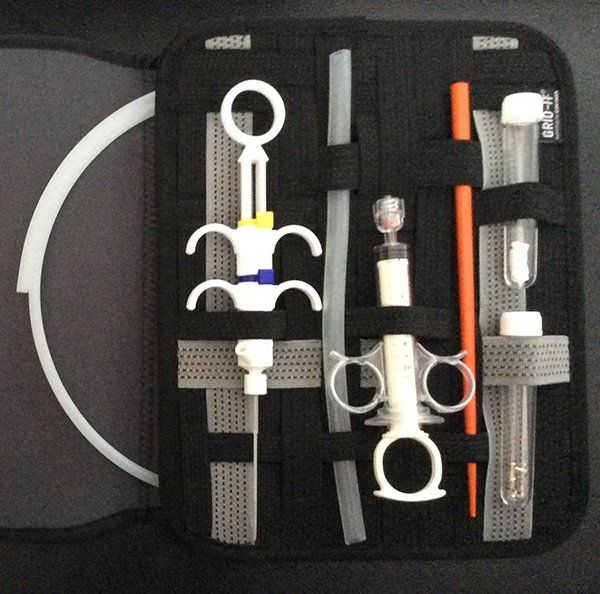

The ArtVentive EOS™ Demo Kit is a professional sales tool for presentation and demonstration of the EOS™ Plug.

It contains: deployed EOS™ Plug, bare nitinol coil, Guiding Catheter, EOS™ Handle and 10cc syringe.

//  Ordering Information  //

EOS™ Plug Catalog # Description Indicated Vessel Diameter Avg. Plug Length at Implant
EOS PG1-5 5mm EOS™ Plug. 0.067″ lumen Compatible / ArtVentive 6F Guide Catheter Compatible. 105cm Working Length. 3–5mm 3mm Vessel – 11mm Plug Length, 5mm Vessel – 9mm Plug Length
EOS PG1-8 8mm EOS™ Plug. 0.067″ lumen Compatible / ArtVentive 6F Guide Catheter Compatible. 105cm Working Length. 4.5–8mm 4.5mm Vessel – 21mm Plug Length, 8mm Vessel – 17mm Plug Length
EOS PG1-11 11mm EOS™ Plug. 0.082″ lumen Compatible / ArtVentive 7.5F Guide Catheter Compatible. 105cm Working Length. 7.5–11mm 8mm Vessel – 12mm Plug Length, 11mm Vessel – 18mm Plug Length
Guide Catheter Catalog # Description Specifications
EOS PSG1-6 6F Guide Catheter for 5mm and 8mm EOS™ Plug. delivery and deployment. Includes Dilator, 0.035″ guide wire compatible. Guidewire – 0.035″, Inner Diameter – 0.067″, Outer Diameter – .0082″, Guide Catheter Working Length – 89cm, Dilator Working Length – 96cm
EOS PSG1-7.5 7.5F Guide Catheter for 11mm EOS™ Plug. delivery and deployment. Includes Dilator, 0.035″ guide wire compatible. Guidewire – 0.035″, Inner Diameter – 0.082″, Outer Diameter – 0.101″ ,Guide Catheter Working Length – 89cm, Dilator Working Length – 96cm
For USA and INTERNATIONAL customers to order, please click below and get started.

// EOS Instructions For Use //
